ContactArt. 23000 - Electric lock for swing doors
Stainless steel electric lock and counterplate, with ambidextrous latch bolt, ideal for operation on swinging doors (opening in both directions). A device on the striking plate allows the latch to be locked in the closed position. In this way, by pressing the special mechanical alignment device, the door is closed automatically when the leaf is approached. Mounting is possible on both vertical and horizontal frames.

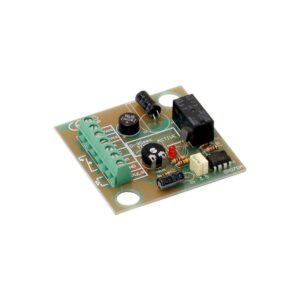

On request: since the opening of the electric lock is limited to the duration of the electrical impulse (security version) or to the lack of power (anti-panic version), we recommend the use of the timer board (Art. 51500) to time the release of the lock (usable only if the electric lock is powered at 12 Vdc). If it is powered at 24 Vdc, it is necessary to use commercial timers not supplied by us.
N.B.: the European profile shaped cylinder can be purchased separately.
PRODUCT CODE:
EMPLOYMENT:
PACKAGE:
VARIANTS:
CHARACTERISTICS:
SPECIFICATIONS:
| Frontal dimensions | 275 x 25 x 3 mm |
| Body dimensions | 230 x 20.5 x 46 mm |

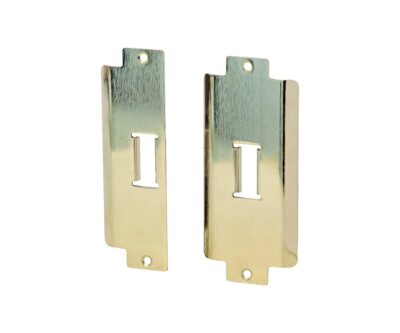

| Counterplate dimensions for wind-up doors | 150 x 68 x 1.5 mm |
| Armature plate dimensions for swing doors with rebate | 150 x 49 x 1.5 mm |
| Latch dimensions | 26 x 15.5 mm 13 mm extension |
| Power supply | 12 - 24 Vac/dc |
| Absorbed current | 280 mA at 12 Vdc 140 mA at 24 Vdc |
| Selectable version | Panic lock (closed with power supply) Security (open with power supply) |
| Opening | Anti-panic: limited to power failure Safety: limited to the duration of the electrical impulse |
| Mechanical opening | European cylinder |
| Entry | 30 mm |
| Latch status microswitch locked/unlocked | C. / N.A. / N.C. |
