ContactArt. 51400 - Opening delay module for emergency exits

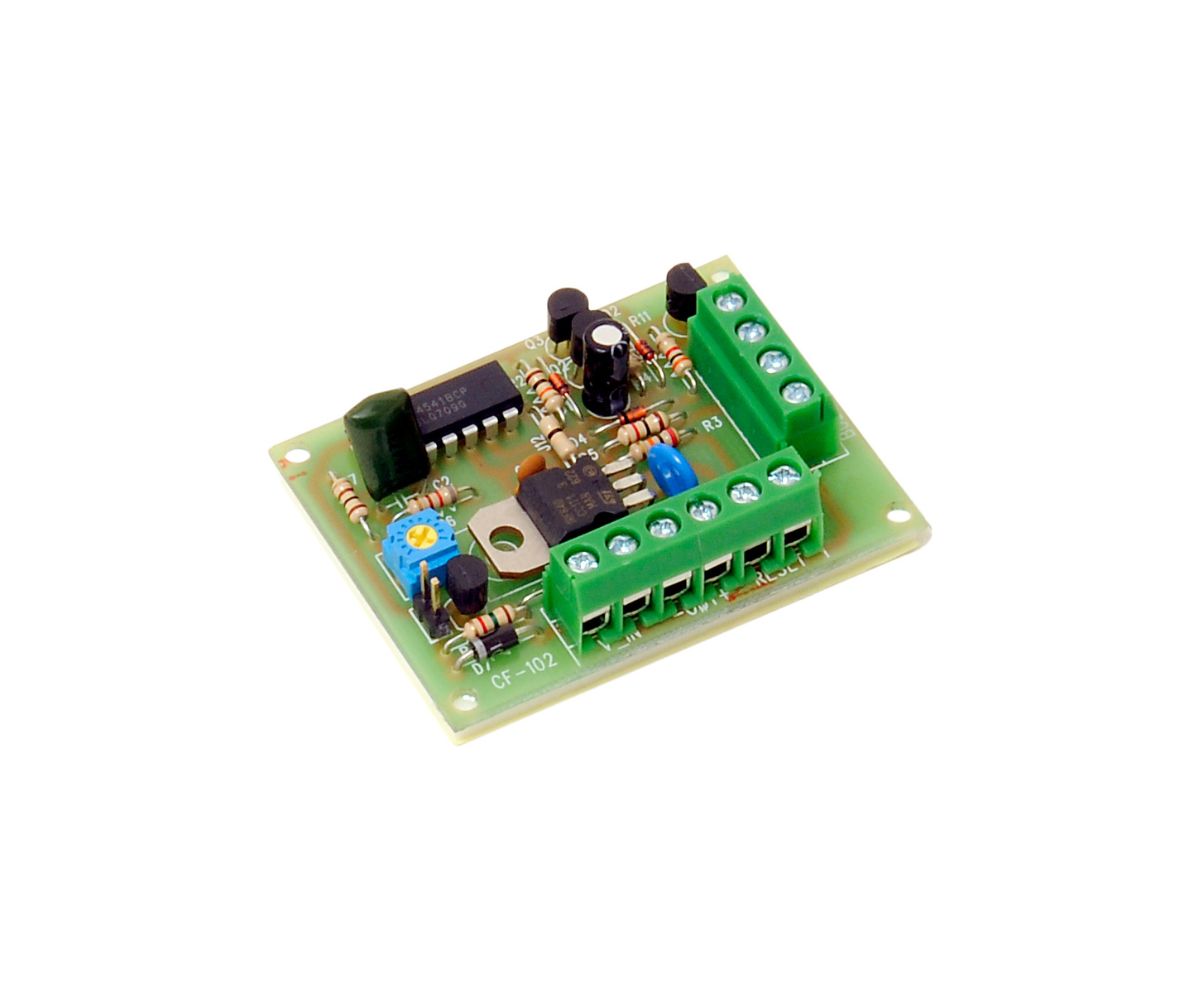

Electronic board for managing the opening delay for emergency exits equipped with safety electromagnets.
PRODUCT CODE:
51400
EMPLOYMENT:
Card can be connected externally to all electromagnets or can also be inserted internally for electromagnets series 130 - 131 - 140
PACKAGE:
Electronic board
VARIANTS:
CHARACTERISTICS:
Electronic board with trimmer-adjustable timer [51400].
SPECIFICATIONS:
| Body dimensions | 57 x 42 x 17 mm |
| Power supply | 12 / 24 Vdc |
| Adjustable timer | 1 - 15 sec |
| Contact input for delay start | N.A. |
| Input for Timing Reset | N.A. |
| Output for alarm buzzer | 12 Vdc |
