ContactArt. 28002 / 28003 – Elettroserratura per cancelli e portoni
Security electric lock for application, for pedestrian gates even exposed to the weather and wooden apartment gates, interchangeable with conventional electric locks.
Stainless steel lock and counterplate, anodised aluminium fronts and stainless steel deadbolt, with anti-burglary device in closed position. Deadbolt closed in the absence of power. It is equipped with internal microprocessor control electronics, mechanical opening with round cylinder with adjustable entry, knob or button and automatic reclosing with adjustable timings.
Series 280 update notice – valid from June 2026
Starting from June 2026, the Series 280 will be available exclusively in the finish Titanium (as shown in the photo). The Silver and Black finishes will be discontinued.

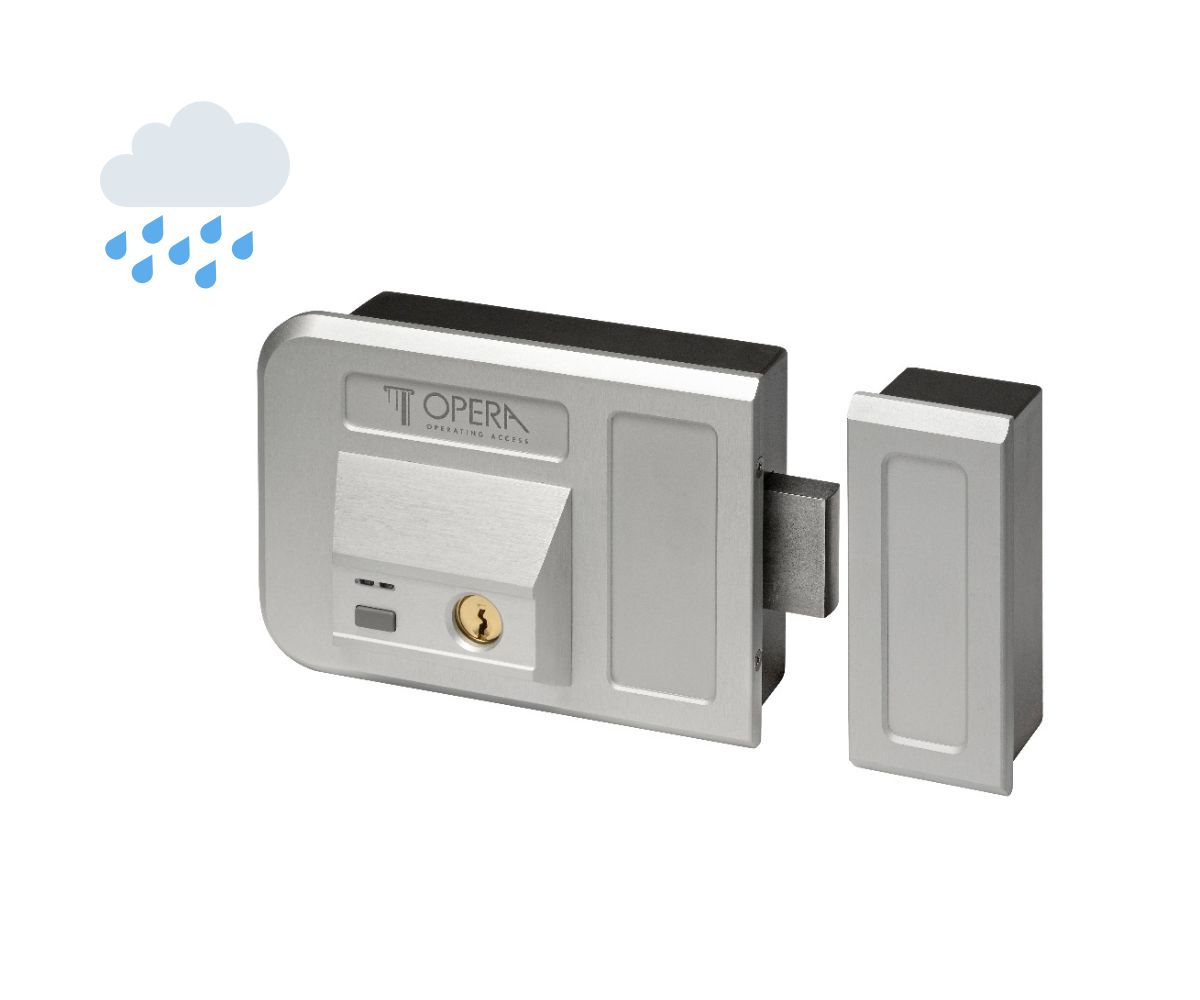

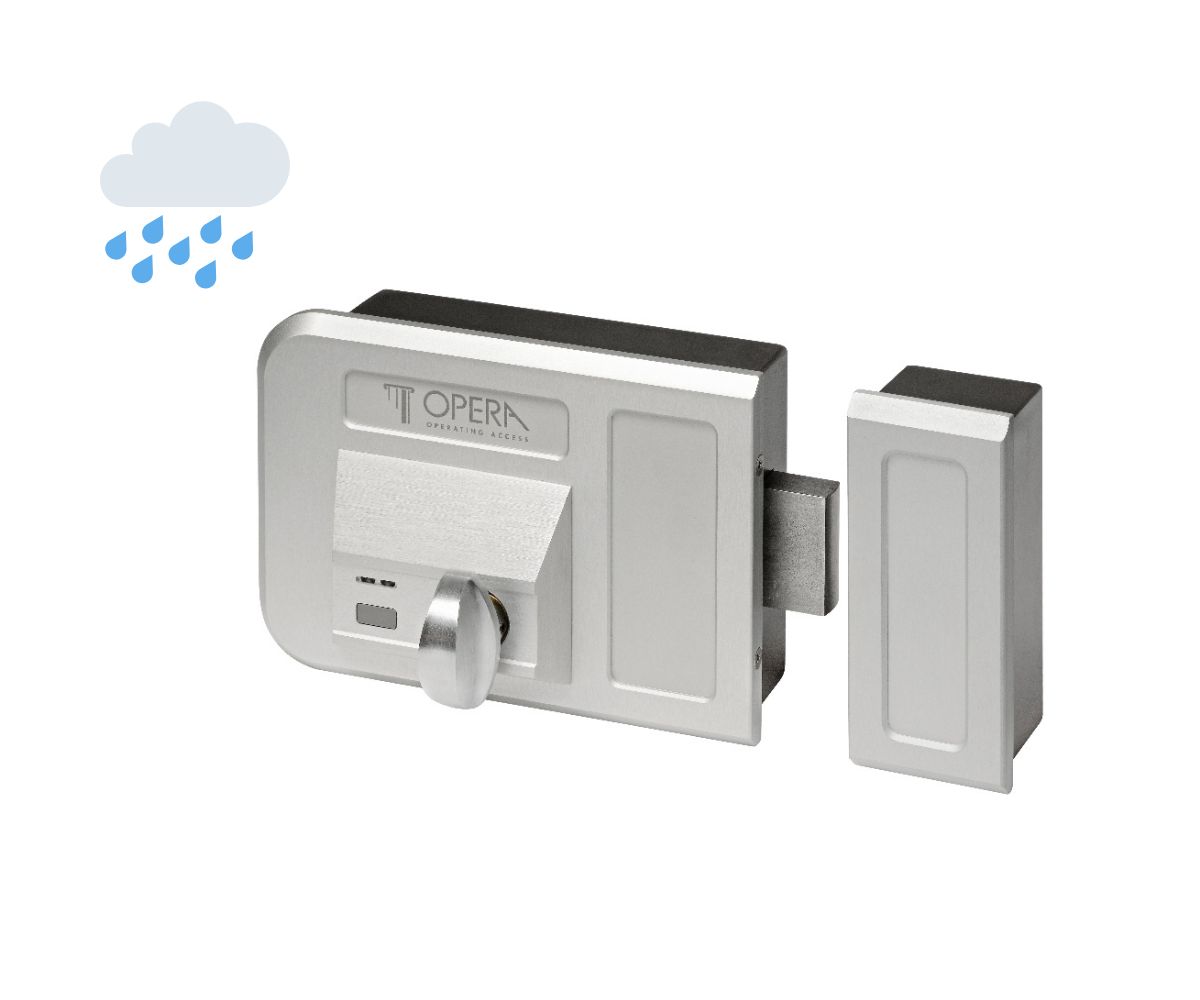

In addition, version 28001 (inside opening with key, without button) will also be removed from the catalogue. The available versions will therefore be: 28002 – inside opening with knob and/or button and 28003 – inside opening with knob and/or button and 28003 – inside opening with key and/or button (the button can be manually enabled or disabled during assembly).
PRODUCT CODE:
EMPLOYMENT:
PACKAGE:
VARIANTS:
CHARACTERISTICS:
SPECIFICATIONS:
| Lock dimensions | 108 x 155 x 41 mm |
| Counterplate dimensions | 108 x 45 x 41 mm |
| Standard deadbolt dimensions | 35 x 12 mm Extension 25 mm |
| Deadbolt dimensions XL | 45 x 12 mm Extension 25 mm |
| XXL deadbolt dimensions | 55 x 12 mm Extension 25 mm |
| Power supply | 12 / 24 Vdc 12 / 18 Vac |
| Inrush current consumption | 1,2 A |
| Holding current | 380 mA |
| Mechanical opening from the outside | Round cylinder |
| Mechanical opening from the inside | Cylinder Knob Button |
| Adjustable entry | 50, 60, 70, 80 mm |
| Functions: | |
| 12 Vac/dc opening control | From intercom Via relay |
| Deadbolt status indication (M version only) | Output relays C. / N.O. / N.C. |
| Door position sensor | Hall effect sensor |
| Two-coloured red/green LED | Deadbolt open/closed status indication |
| Lower blue/white LED | Closing position (blue) and opening position (white) night signal to illuminate the ground |
| Closing times | 2 sec at door approach 5 to 60 seconds if the door is not opened |
| Suitable for weather operation | With internal heating system if the temperature drops below 5°C |
| Codes | |
| 28002.1 | Versione apertura lato interno con pomolo e pulsante – Mano destra |
| 28002.2 | Versione apertura lato interno con pomolo e pulsante – Mano sinistra |
| 28003.1 | Inward opening version with key and button - Right hand |
| 28003.2 | Inward opening version with key and button - Left hand |
| Art. + SC | Supply without cylinder. Please specify the type of cylinder used (Cisa, Iseo, Viro, Feb, Yale) |

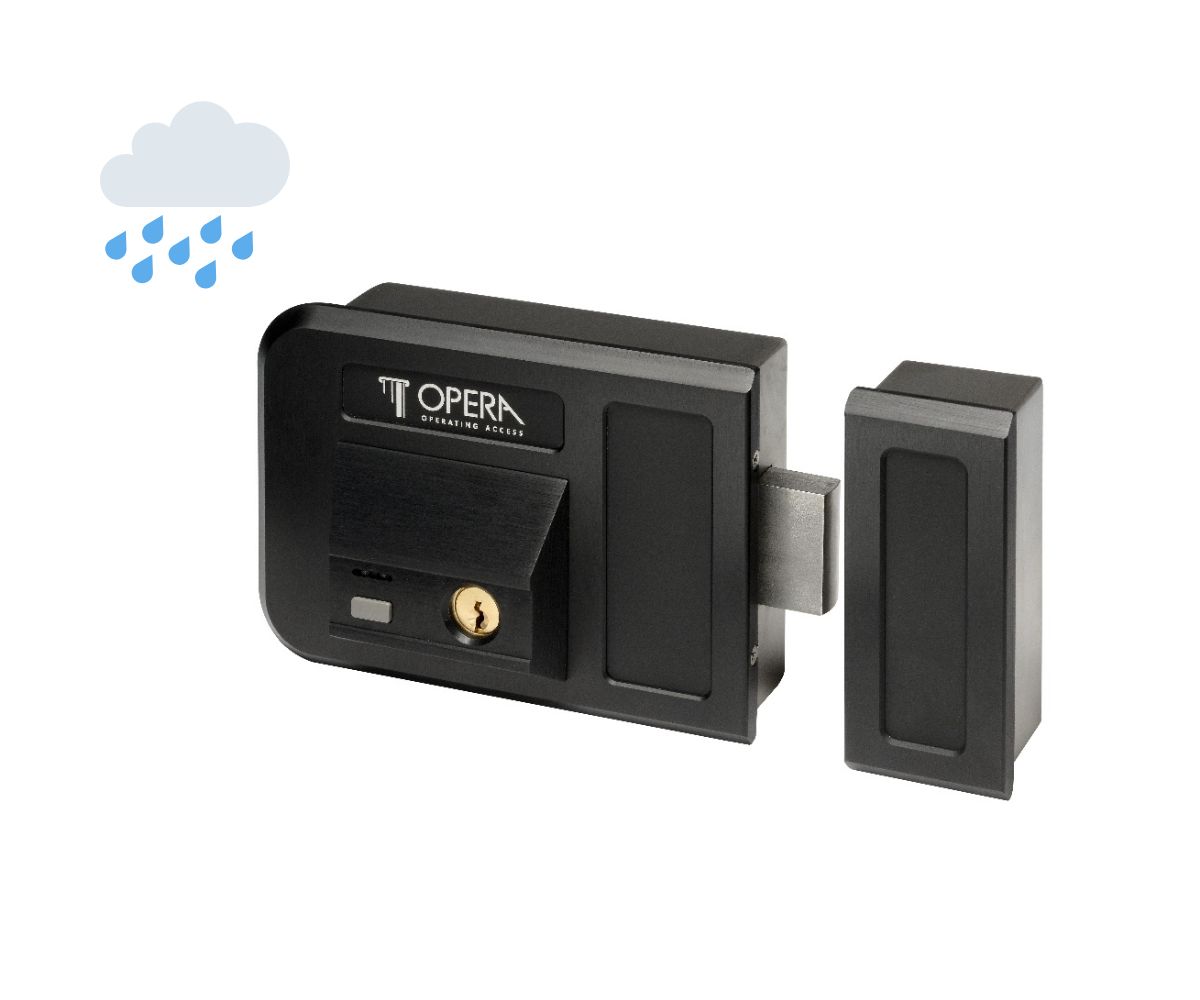

| Art. + N | Black anodised lid |
| Art. + M | Version with removable deadbolt status relay |
| Art. + XL | Extended deadbolt + 10 mm |
| Art. + XXL | Extended deadbolt extension + 20 mm |
| Art. + CP | Supplied with flat counterplate |
| Art. + DR | Version with 5 mm raised internal defender for insertion of round security cylinders |
