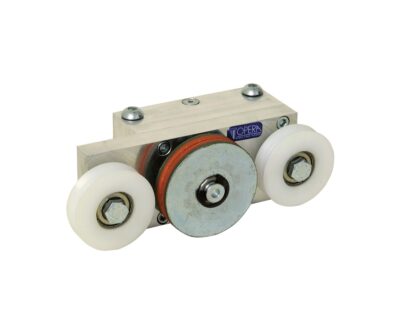

ContactArt. 60001 - Continuous-closing hydraulic damper with 3 wheels for steel cable diameter 3 mm
Continuous closing regulators make it possible to stabilise the speed of the automatic re-closing of sliding fire doors. Once the critical moment of departure has passed, the speed of the door increases progressively and in proportion to the excursion period and its own weight. In emergency situations, the energy developed could cause serious damage to people or property who might have to intervene. The hydraulic regulator stabilises the closing speed in a constant manner.
PRODUCT CODE:
60000-1
EMPLOYMENT:
Continuous closing regulator for counterweighted sliding fire doors
PACKAGE:
Regulator
VARIANTS:
CHARACTERISTICS:
Hydraulic system with free clockwise sliding and anti-clockwise braking (reversible). The braking system can be adjusted with a screw. Single-piece aluminium body. Steel central pulley with Vulcolan insert, side Delrin pulleys. Lateral fixing by means of M8 screws for mounting on support brackets (on request). Article code [60001].
SPECIFICATIONS:
| Body dimensions (including pulley) | 169 x 55 x 75 mm |
| Central pulley diameter (steel) | 60 mm |
| Diameter of side pulleys (delrin) | 49 mm |
| Operating temperature | - 15° / + 70° |
