Art. 57530A / 57530ARF - Energy saving management unit

A control unit that allows automatic recognition of the presence of people inside the flat for the consequent activation/deactivation of electricity on specific devices (e.g. lights and air conditioning). It can also be installed independently of the Doora system (e.g. on structures managed with keys or other systems).

PRODUCT CODE:

57530A / 57530ARF

EMPLOYMENT:

Energy-saving management unit for automatic detection of the presence of people in a room

PACKAGE:

Control unit

VARIANTS:

TYPE OF CONNECTION

Clear

Technical instructions

Standard catalogue

CHARACTERISTICS:

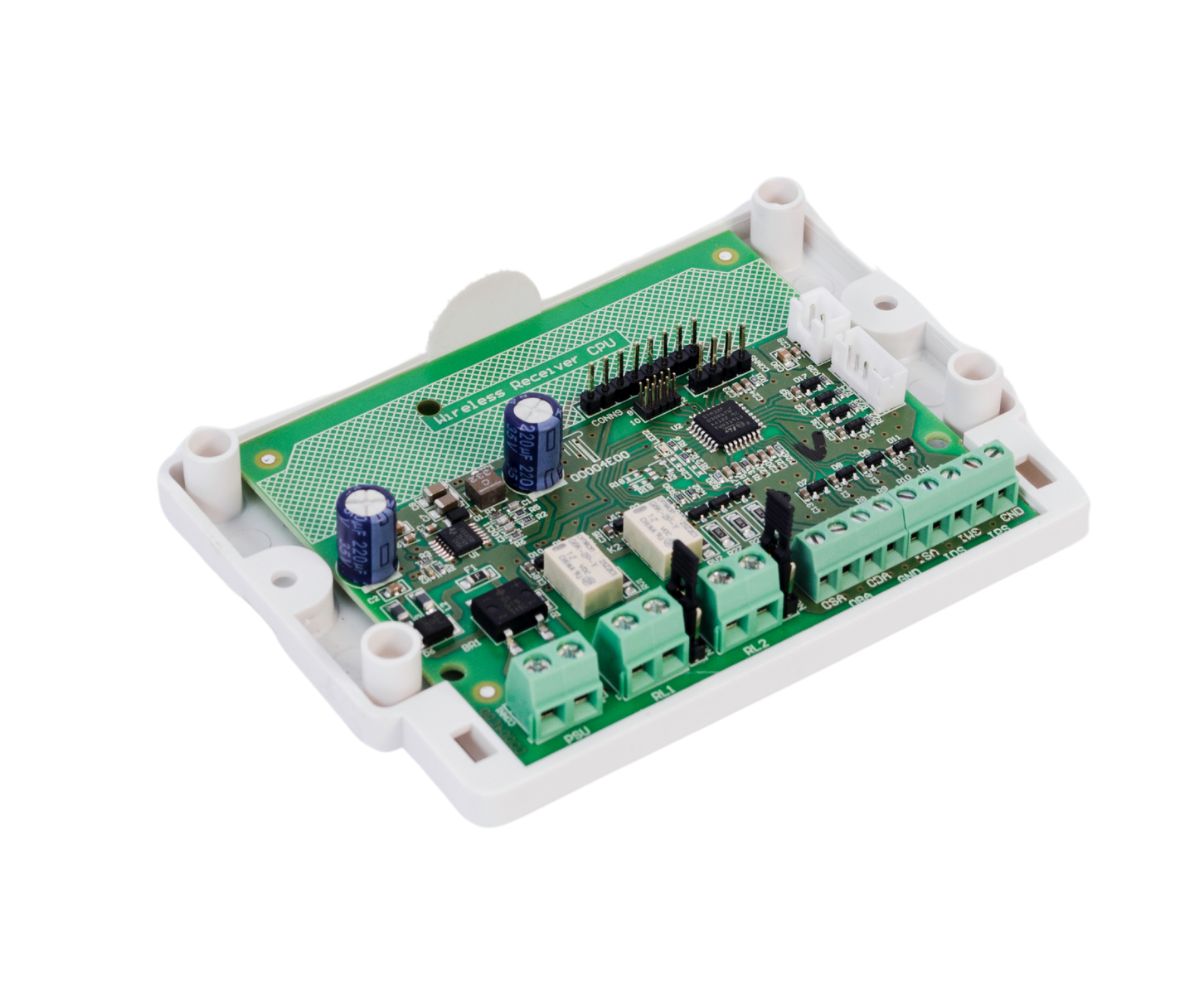

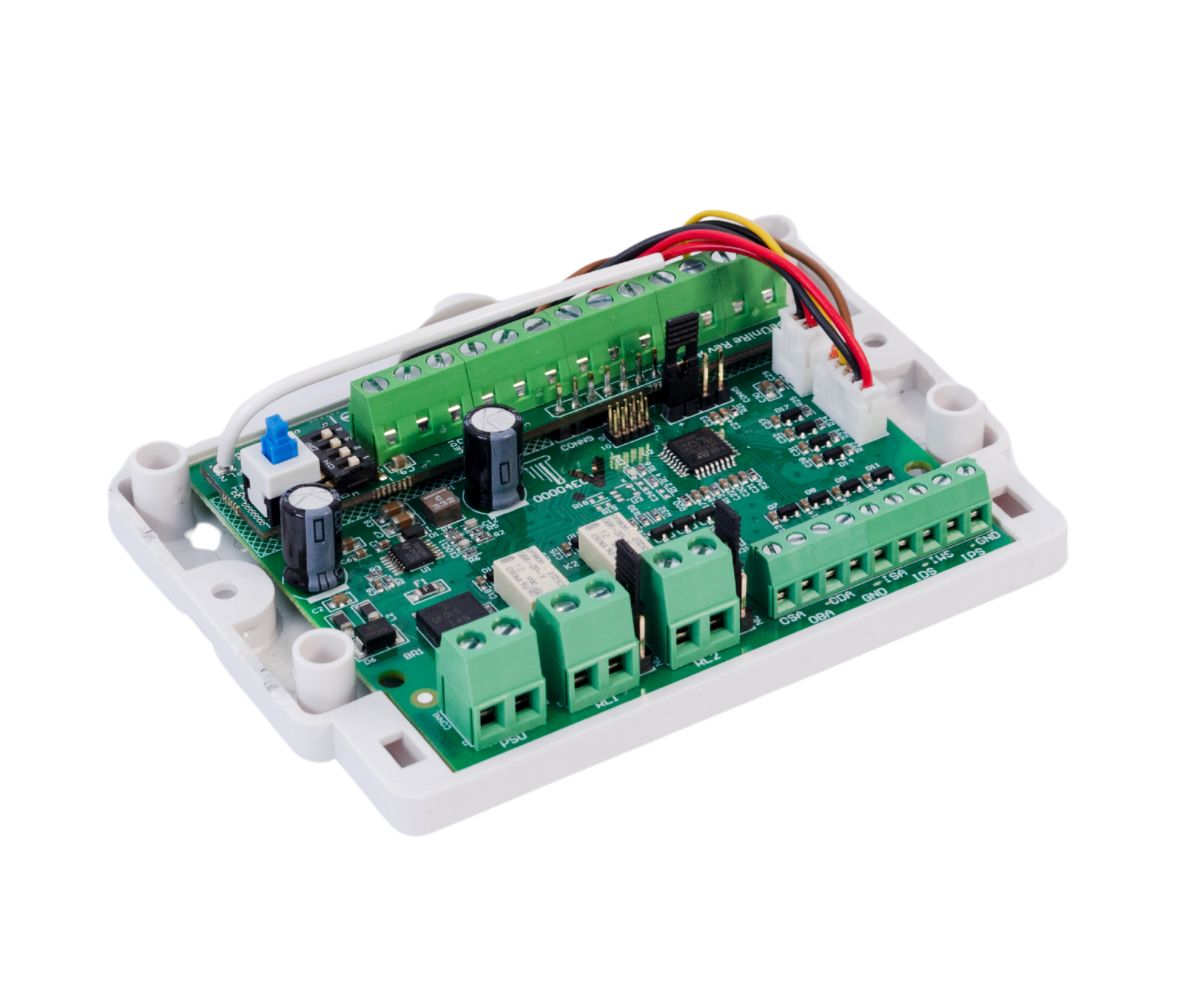

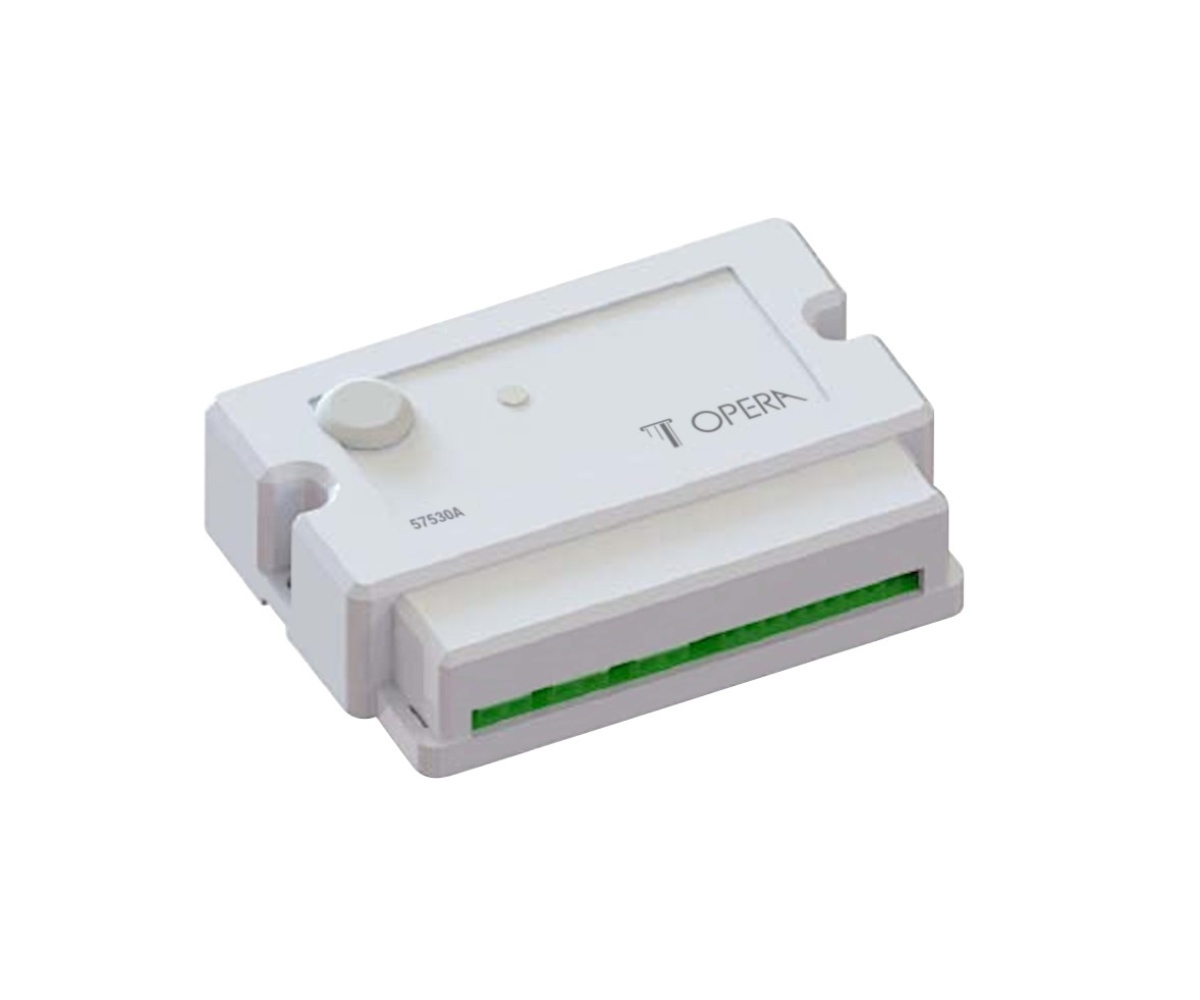

White ABS box, available in two versions: for flush connection [57530A] or for 868 MHz radio link [57530ARF].

SPECIFICATIONS:

Body dimensions	111 x 72 x 29 mm
Card power supply	12 - 24 Vdc 12 - 18 Vac
Absorbed current	100 mA max.
Control unit outputs for wire connection	Power output for current enable
Exit control unit with 868 MHz radio circuit	No. 2 Relay outputs C./N.O./N.C (1A at 30 Vdc): - Room enabling input - Air-conditioning system enable/disable contact No. 3 Open Collector Outputs (100 mA max. 60 Vdc): - sickness alarm output - low battery" warning output radio sensors a - 'extended sash opening' output No. 4 inputs for sensors and/or wired auxiliary contacts: - Sickness alarm activation (e.g. from bathroom rod) - magnetic door status sensor (N.C at door close) - magnetic window status sensor (N.C when window closed) - presence sensor (N.C contact at rest)
In the radio version, up to 16 devices per channel can be associated	Channel 1: Magnetic radio sensor Art. 57532ARF for 'door status'. Channel 2: Magnetic radio sensor Art. 57532ARF for 'window status'. Channel 3: Radio sensor Art. 57533ARF and/or 57534ARF for "person presence
