ContactArt. 55640SE - Management electronics for ATM and credit card reader for self-service areas
Management electronics for ATM and credit card reader for self-service area. On request, it is possible to specify the ABI code for opening using only the card of the specific bank indicated.
PRODUCT CODE:
55640SE
EMPLOYMENT:

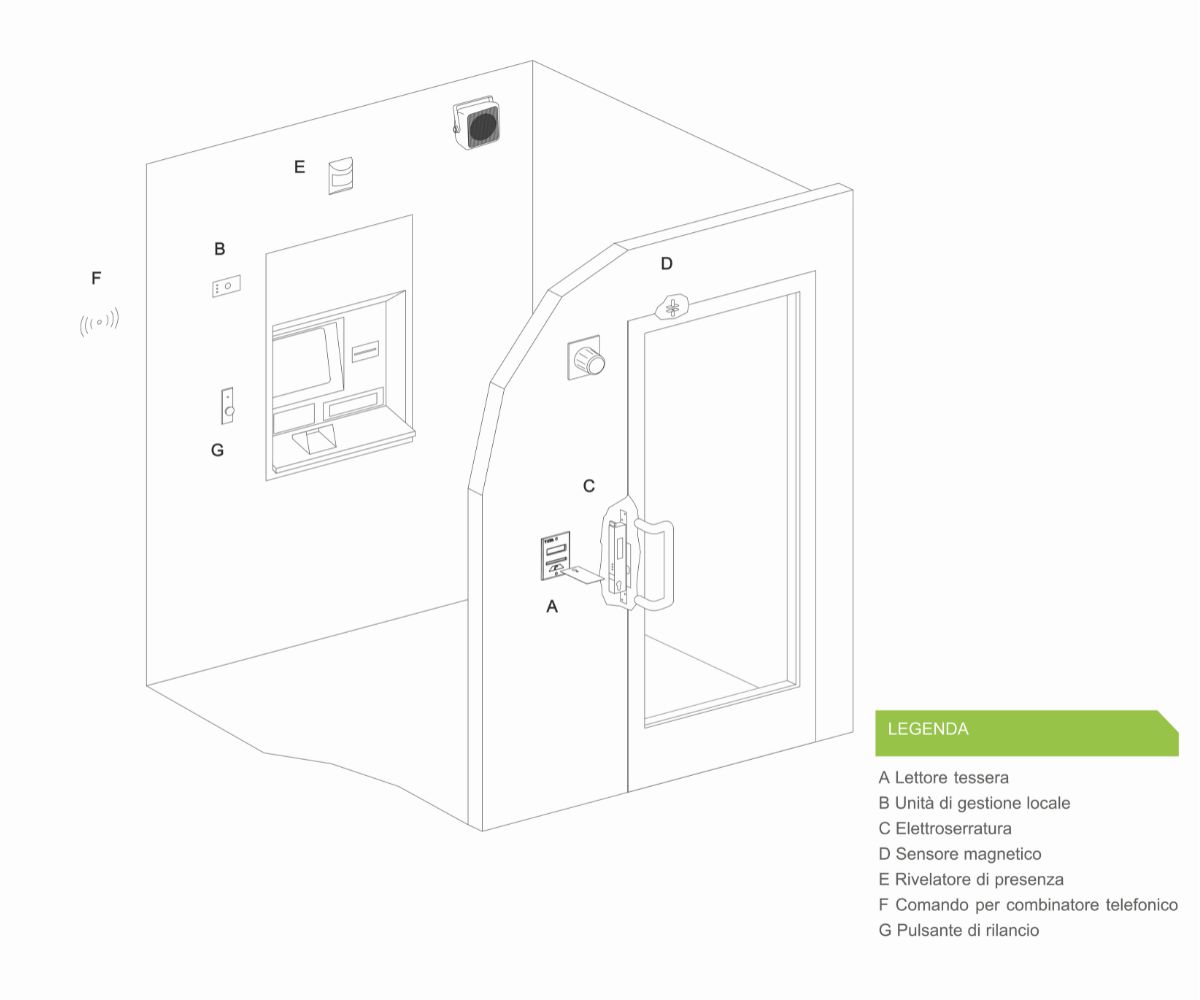

Management electronics for ATM and credit card reader for opening the door of the automatic bank premises
PACKAGE:
Management electronics
VARIANTS:
CHARACTERISTICS:

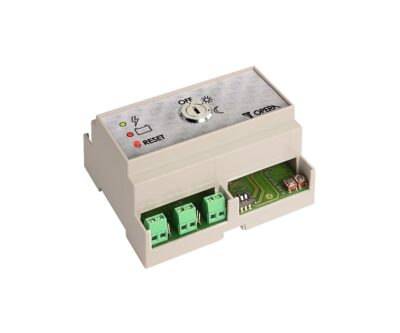

Grey ABS box for DIN rail mounting [55640SE].
SPECIFICATIONS:
| Box dimensions | 105 x 95 x 62 mm |
| Power supply | 11 ÷ 14 Vdc from external power supply (not supplied) |

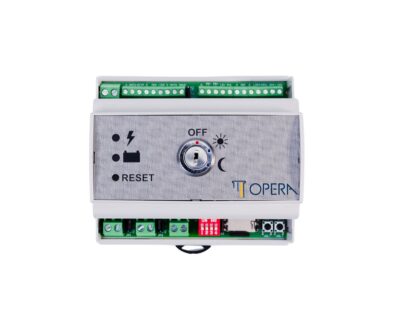

| Front panel with | - Mains presence LED - Low battery led - Central reset button and reader - Key switch System On/Day/Off Service |
| Operation time and notice to user | Standard, already programmed |
| Inputs | - Input for remote selection of System Active/Day/Out of Service - N.O. input for time relay button - N.C. input for anti-noise detector - N.O. input for management of external openings from push-button - N.O. input for internal opening - N.O. input for external sash sensor - N.O. input for internal door sensor (door open/reader lock) - N.O. input for enabling ABI code (e.g. from timer Art. 05301C) |
| Speaker connection | Amplified output |
| Management of internal speech synthesis | Customisable on SD Card |
| Malfunction alarm management | Yes |
| Managing a telephone dialer | With output contact |
| Lock opening | A relay C./N.O./N.C. - 10A selectable at 2 or 5 sec. |
| Alarm output | With relay 5A/230V |
