ContactArt. 54250 - Electronic door control unit
Control electronics for managing a door. Dedicated to the management of Maxima series electromechanical locks.
PRODUCT CODE:
54250
EMPLOYMENT:
Timed and/or interlocked control of Maxima series solenoid locks
PACKAGE:
Electronic control unit (contained inside a grey ABS box)
VARIANTS:
CHARACTERISTICS:

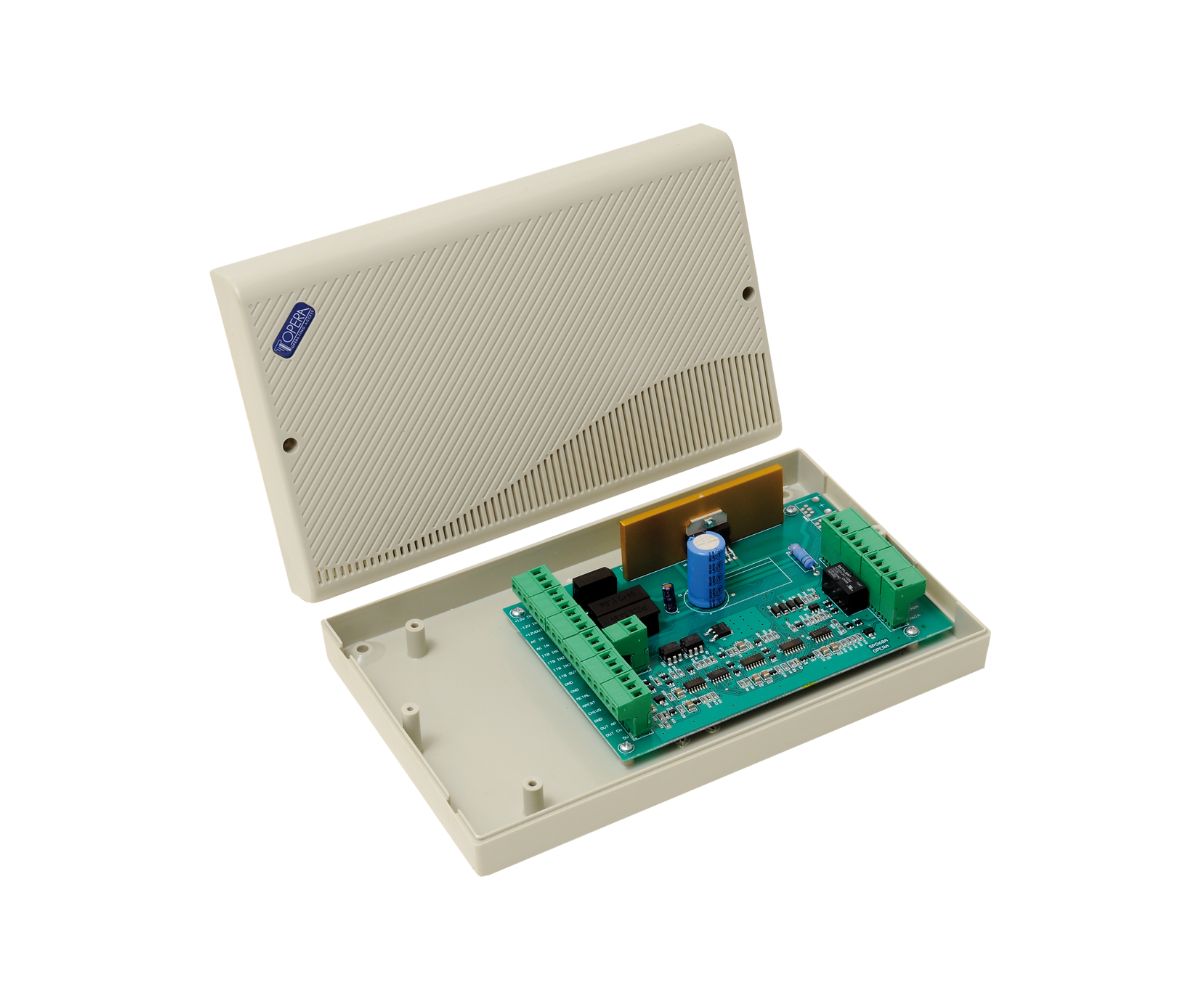

Electronic control unit with grey ABS housing [54250].
SPECIFICATIONS:
| Body dimensions | 240 x 150 x 48 mm |
| Power supply | 10-12 Vac / 65 V.A. (see Art. 05210) 12 Vdc / 3 A, if buffer battery operation is required (see art. no. 05320A or 05312A and battery art. no. 00712) |
| Inputs with N.O. contact for: | - Opening - Block or Metal Detector - Emergency - Deadbolt position (opto-electronic) - Door position |
| Exits for: | - Relay C./N.O./N.C. double changeover for status signalling bolt and for connection to traffic lights - Failure Alarm Open Collector Contact Cascadable to interlock several ports with each other (to be connected one for each port to be controlled) - Automatic reclosure after 0.5 sec. (selectable to 1 sec.) to the door approach - Automatic reclosure after 6 sec. (selectable to 13 sec.) if the door is not opened - Automatic repetition of received command if not executed opening with no. 4 consecutive attempts - Automatic repetition of received command if not executed closing with no. 4 consecutive attempts - Electronic control and protection of non-executed command |
