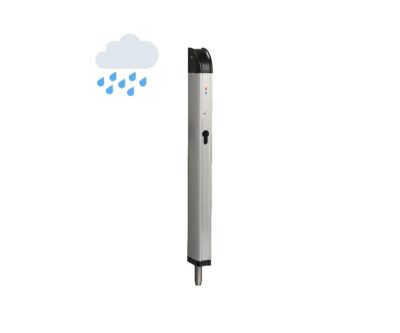

ContactArt. 28720 / 28720N - Motorised deadbolt
High-security solenoid bolt for doors, automatic gates and overhead garage doors. Suitable for weather operation thanks to the stainless steel lock body and an internal heating system that is activated if the temperature drops below 5 °C. It is equipped with internal microprocessor control electronics, deadbolt position contact via internal relay, door position and deadbolt position control sensors, adjustable timings and a quick-connect connector. The deadbolt is rotating anti-cutting in stainless steel and features an anti-burglary device with 'total reaction' lock in the closed position. It can be operated by remote control of the gate but also allows mechanical opening and closing by manual operation with a European cylinder (hole is through on both sides). Supplied without cylinder on the inside.
N.B.: the half cylinder (40+10 mm) or the European profile double cylinder can be purchased separately.
PRODUCT CODE:
EMPLOYMENT:
PACKAGE:
VARIANTS:
CHARACTERISTICS:
SPECIFICATIONS:
| Lock dimensions | 515 x 41.5 x 57.5 mm |
| Deadbolt dimensions | ø 18 mm Extension 55 mm |
| Power supply | 12 / 30 Vdc 12 / 18 Vac |
| Maximum current under load | 3 A at 12 Vdc 1.5 A at 24 Vdc |
| Absorbed current | 600 mA at 12 Vdc 300 mA at 24 Vdc |
| Mechanical opening and closing from the outside | European cylinder |
| Functions: | |
| Signalling LEDs | Red / Green for bolt status Blue for active heater/key movement |
| Opening commands | N.A. Command Voltage contact 12 Vac/dc / 24 Vdc |
| Deadbolt position contact | C. / N.A. / N.C. |
| Door position contact N.O. | For the use of an external door alignment sensor |
| Sash position sensor | Hall sensors |
| Alarm Open Collector Output for | Prolonged sash opening from 0÷180 sec. Failure |
| Checking the bolt position | Hall sensors |
| Closing times | 0 to 5 sec. when door is approached 5 to 180 sec if the door is not opened |
| 4 programmable operating modes: | - Automatic with reclosing time management - Step / Step without timing management (1 pulse opens and 1 pulse closes) - Automatic Fail Safe (with optional external board Art. 02295) - Step / Fail Safe Step (with optional external board Art. 02295) |
| Codes | |
| 28720 | Silver-coloured anodised crankcase |
| 28720N | Black anodised crankcase |
