Art. 24800 / 24808 - Security solenoid bolt for interlocking system - FAIL SECURE

Security solenoid bolt for intensive and continuous use, with the possibility of insertion on the frame or on the leaf, for aluminium or steel doors in single configuration (apartment blocks, offices, companies...) or interlocked (banks, jewellers, institutions...), which can be combined with interphones and access control systems. Stainless steel front and counterplate (with counterplate equipped with alignment magnet) and rotating bolt in hardened, anti-cut and anti-burglary steel, with mechanical lock in closed position. Locked in the absence of power supply. Equipped with internal microprocessor control electronics and quick-connect connector, mechanical opening with European cylinder or handle and automatic reclosing with adjustable timings (timings can be switched off for use of the solenoid bolt with external control electronics).

N.B.: the European profile shaped cylinder can be purchased separately.

PRODUCT CODE:

24800 / 24808

EMPLOYMENT:

Security solenoid bolt for upright installation, with possibility of insertion on frame or sash, for aluminium or steel doors

PACKAGE:

Solenoid bolt, armature plate, connector and cylinder screw (supplied without cylinder)

VARIANTS:

FRAMEWORK HANDLE

REVENUE

OPERATION

CYLINDER

OTHER VARIANTS

Clear

Technical instructions

Standard catalogue

CHARACTERISTICS:

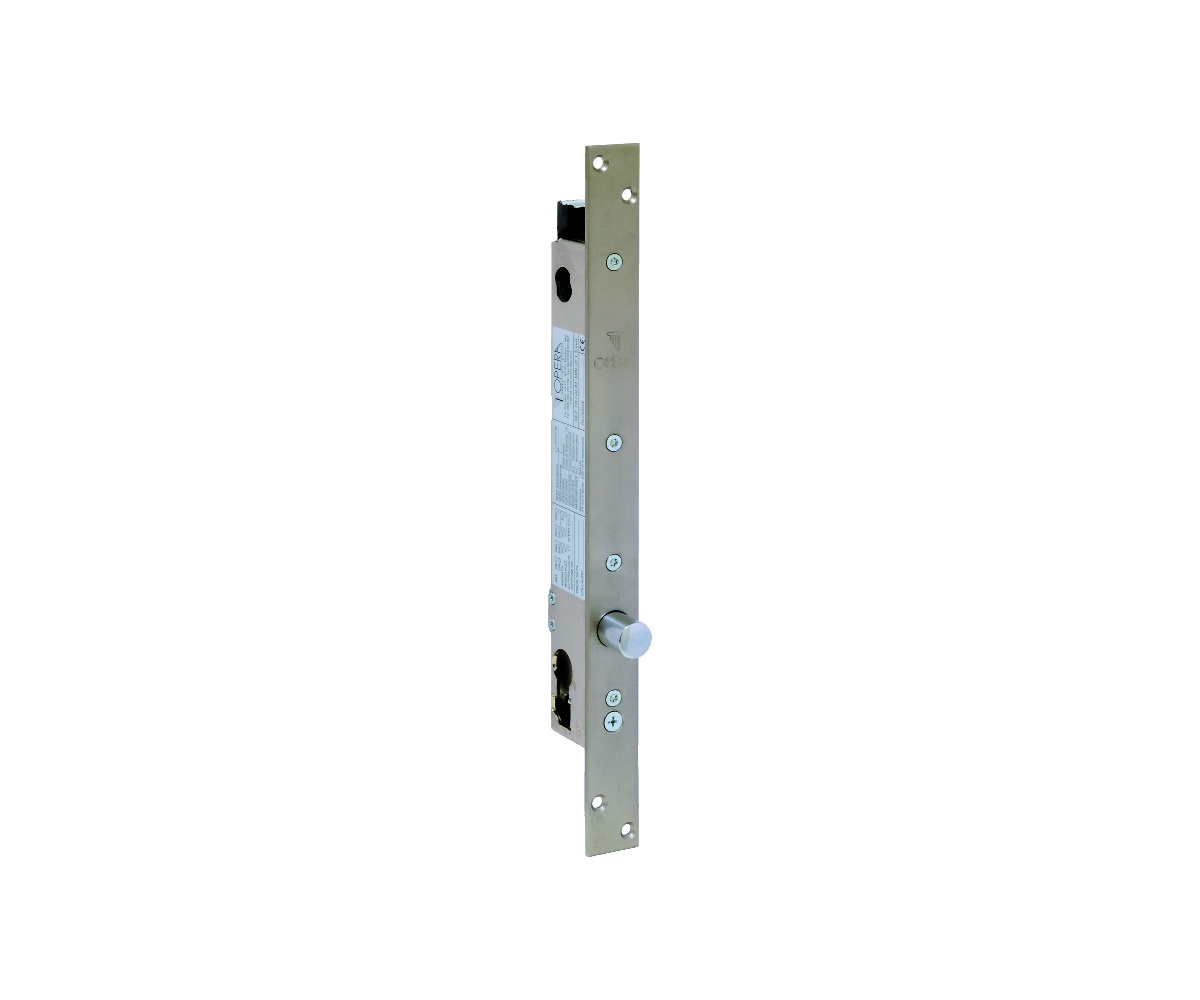

Solenoid bolt with stainless steel striking plate and armature plate and anti-cutting rotating deadbolt in hardened steel [24800 / 24808].

SPECIFICATIONS:

Lock front dimensions	320 x 25 x 3 mm
Counterplate front dimensions	150 x 25 x 3 mm
Lock body dimensions	230 x 22 x Y mm
Standard deadbolt dimensions	Diameter ø 16 mm Extension 20 mm
Deadbolt dimensions XL	Diameter ø 16 mm Extension 25 mm
Power supply	10 to 30 Vdc
Inrush current consumption	2,5 / 3 A
Continuously electronically controlled holding current	130 - 230 mA
Mechanical opening	European cylinder Handle N.B.: cylinder with inside knob cannot be used
Entry	25, 30, 35, 60 mm

Functions:
N.A. Commands of	Opening Block Emergency Reset Alarms
Deadbolt position contact	C. / N.A. / N.C.
Door position contact N.O.	For monitoring function Open / Closed For the use of an external door alignment sensor
Open Collector Alarm Contact for	Prolonged door opening from 0 to 120 sec. Failure Emergency Simultaneous opening of 2 or more doors when connected in interlocking configuration
Checking the bolt position	Opto-electronic system
Sash position sensor	Internal magnetic sensor
Buttons for monitoring and adjusting	Closing times Prolonged Door Open Alarm Trigger Time (function can be switched off)
Closing times	0 to 5 sec. when door is approached 0 to 60 sec if the door is not opened

Codes
2480025	Without handle panel, entry 25
2480030	Without handle panel, entry 30
2480035	Without handle panel, entry 35
2480060	Without handle panel, entry 60
2480825	With handle square 8 mm, entry 25
2480830	With handle square 8 mm, entry 30
2480835	With handle square 8 mm, entry 35
2480860	With 8 mm handle square, entry 60
Art. + XL	Extended deadbolt extension + 5 mm

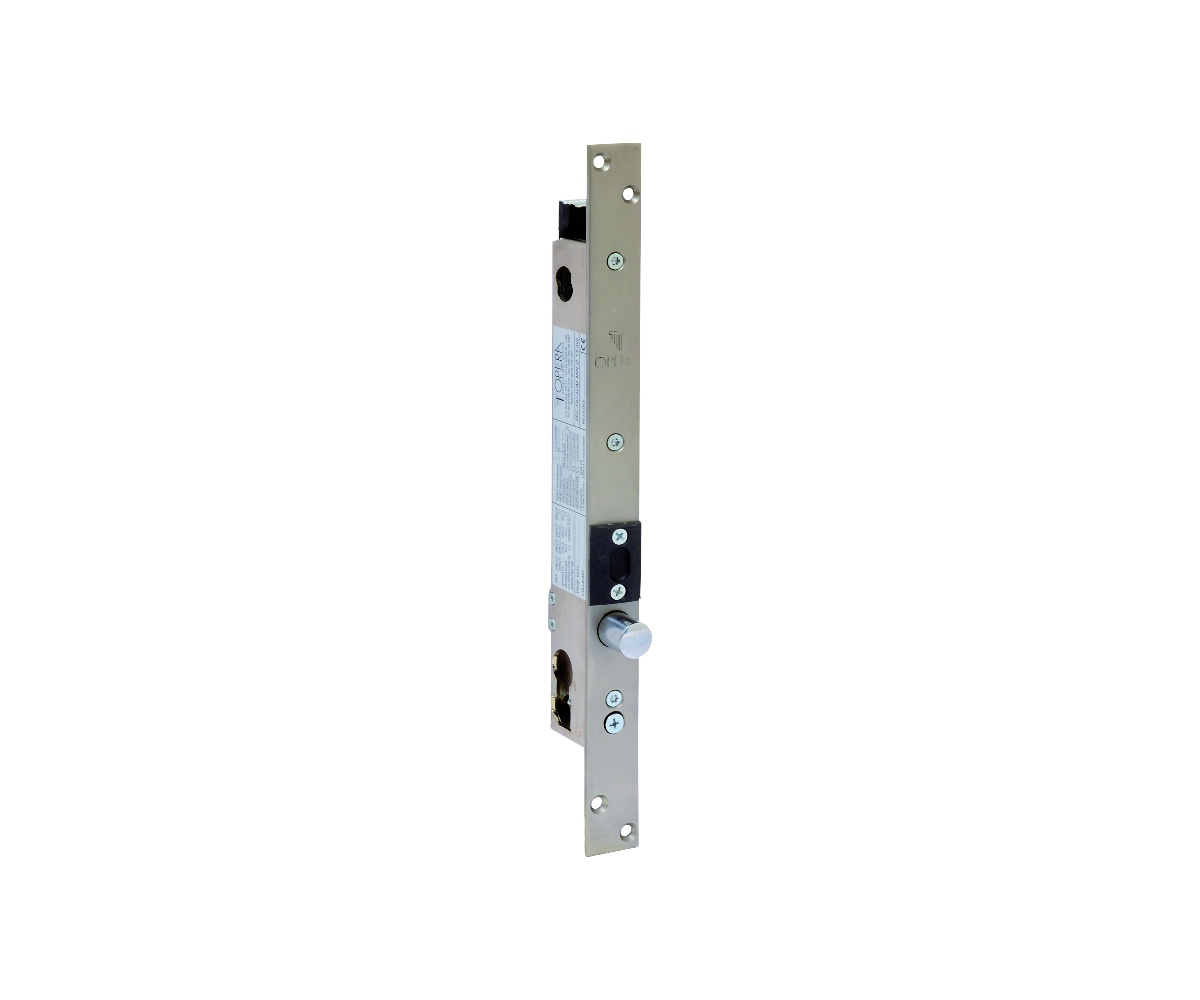

Art. + SA	Solenoid bolt with anti-rebound alignment ball mounted directly on the armature plate with ABS slide on the front
Art. + SAXL	Solenoid bolt with anti-rebound alignment ball and increased bolt extension + 5 mm
Art. + CS	Solenoid bolt with needle key cylinder inserted (available inlets mm 27, 32 and 37)
Art. + PK	Solenoid bolt for Swiss cylinder diam. 22 (available inlet mm 35)
