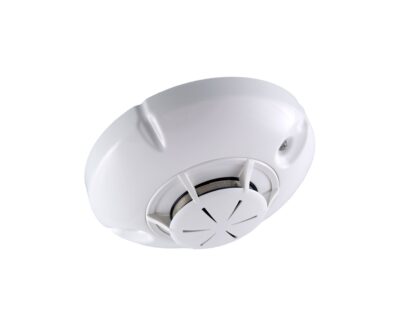

ContactArt. 05204A / 05204ABRA - Heat rate of rise detector
Accessories for the installation of fire protection systems according to EN54.
PRODUCT CODE:
05204A / 05204ABRA
EMPLOYMENT:
Thermo-velocimetric detector required to activate the alarm condition in the event of a sudden rise in temperature
PACKAGE:
Additional detector complete with base for ceiling mounting
VARIANTS:
CHARACTERISTICS:
White ABS box. Article available in two versions: one connectable to the central Opera 52002: [05204A] and that which can be connected to other power stations not Opera: [05204A + BRA].
SPECIFICATIONS:
| Diameter x height | 100 x 47 mm |
| Card power supply | 24 Vdc (10 - 30 Vdc) |
| Absorption at rest | 55 MicroA at 24 V |
| Absorption in alarm | 25 mA |
| Operating temperature | - 20 to + 70°C |
| Operating technology | Thermal |
| Standards compliance | EN54-5 and EN54-7 |
