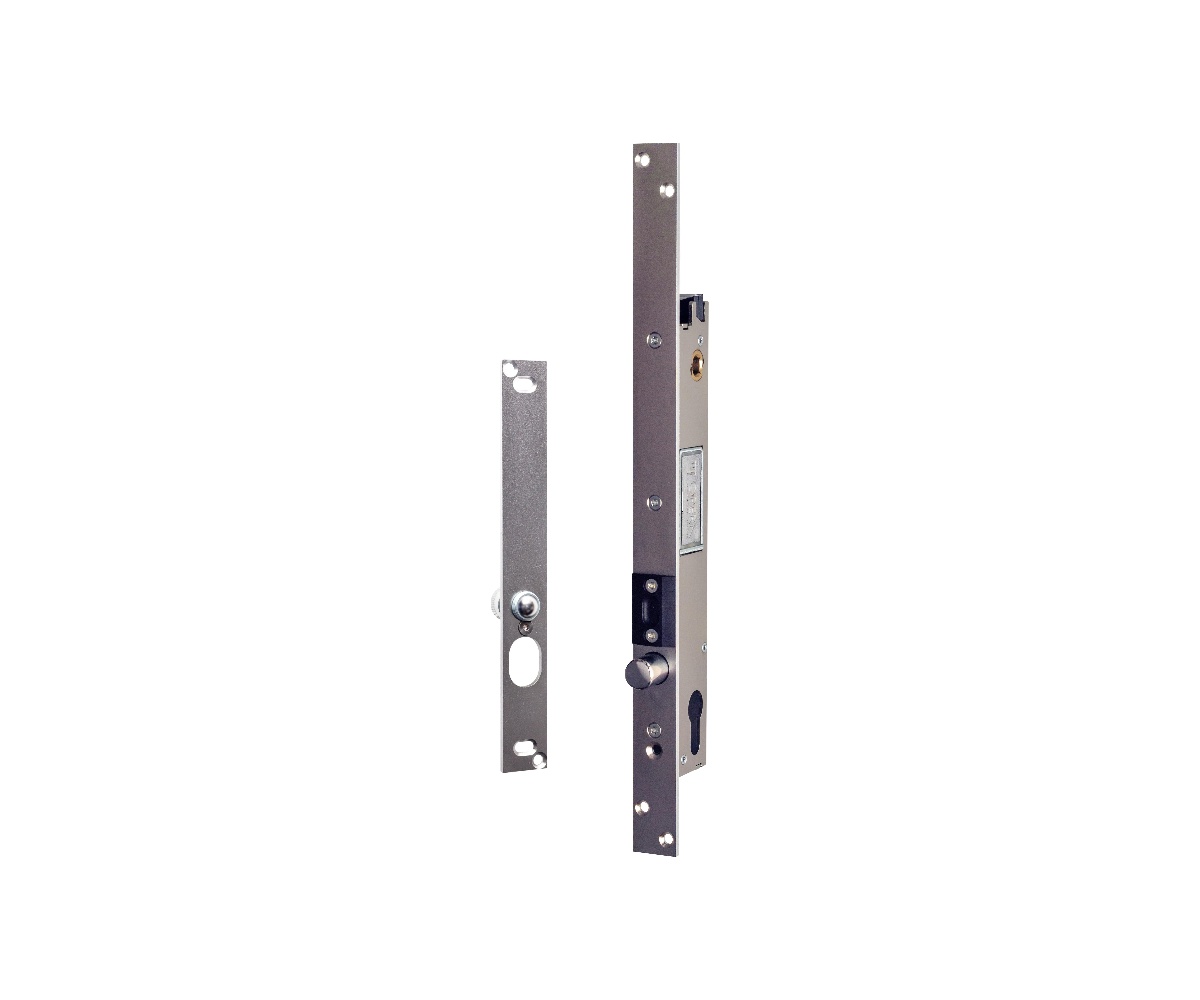

ContactArt. 25600FL / 25608FL - Security solenoid bolt for single door - FAIL SAFE - Ideal for Replacements
Solenoid bolt compatible with Corni series 57036/38 mullion type for intensive and continuous use, with the possibility of insertion on the frame or on the leaf, for aluminium or steel doors in single configuration (blocks of flats, offices, companies...) but with provision for interlocking connection (banks, jewellers, institutions...), can be combined with interphones and access control systems. Stainless steel front and counterplate (with counterplate equipped with alignment magnet) and rotating deadbolt in hardened anti-cut and anti-burglary steel, with mechanical lock in closed position. It is equipped with internal microprocessor control electronics and quick-connect connector, mechanical opening with European cylinder or handle and automatic reclosing with adjustable timings (timings can be switched off for use of the solenoid bolt with external control electronics).
N.B.: the European profile shaped cylinder can be purchased separately.
PRODUCT CODE:
EMPLOYMENT:
PACKAGE:
VARIANTS:
CHARACTERISTICS:
SPECIFICATIONS:
| Lock front dimensions | 360 x 25 x 3 mm |
| Counterplate front dimensions | 205 x 25 x 3 mm |
| Lock body dimensions | 230 x 22 x Y mm |
| Standard deadbolt dimensions | Diameter ø 16 mm Extension 20 mm |
| Deadbolt dimensions XL | Diameter ø 16 mm Extension 25 mm |
| Power supply | 10 to 30 Vdc |
| Inrush current consumption | 2,5 / 3 A |
| Continuously electronically controlled holding current | 130 - 230 mA |
| Mechanical opening | European cylinder Handle N.B.: cylinder with inside knob cannot be used |
| Entry | 25, 30, 35 mm |
| Functions: | |
| N.A. Commands of | Opening |
| Deadbolt position contact | C. / N.A. / N.C. |
| Checking the bolt position | Opto-electronic system |
| Sash position sensor | Internal magnetic sensor |
| Buttons for monitoring and adjusting reclosing times | 0 to 5 sec. when door is approached 0 to 60 sec if the door is not opened |
| Codes | |
| OP5703625 | With handle square 8 mm, entry 25 - Deadbolt open in power failure |
| OP5703630 | With 8 mm handle square, entry 30 - Deadbolt open in power failure |
| OP5703635 | With 8 mm handle square, entry 35 - Deadbolt open in power failure |
| OP5703825 | With handle square 8 mm, entry 25 - Deadbolt closed without power |
| OP5703830 | With handle square 8 mm, entry 30 - Deadbolt closed without power |
| OP5703835 | With handle square 8 mm, entry 35 - Deadbolt closed without power |
| Art. + XL | Extended deadbolt extension + 5 mm |
