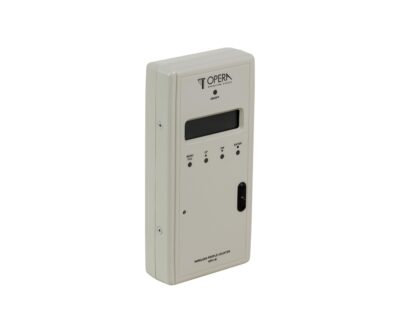

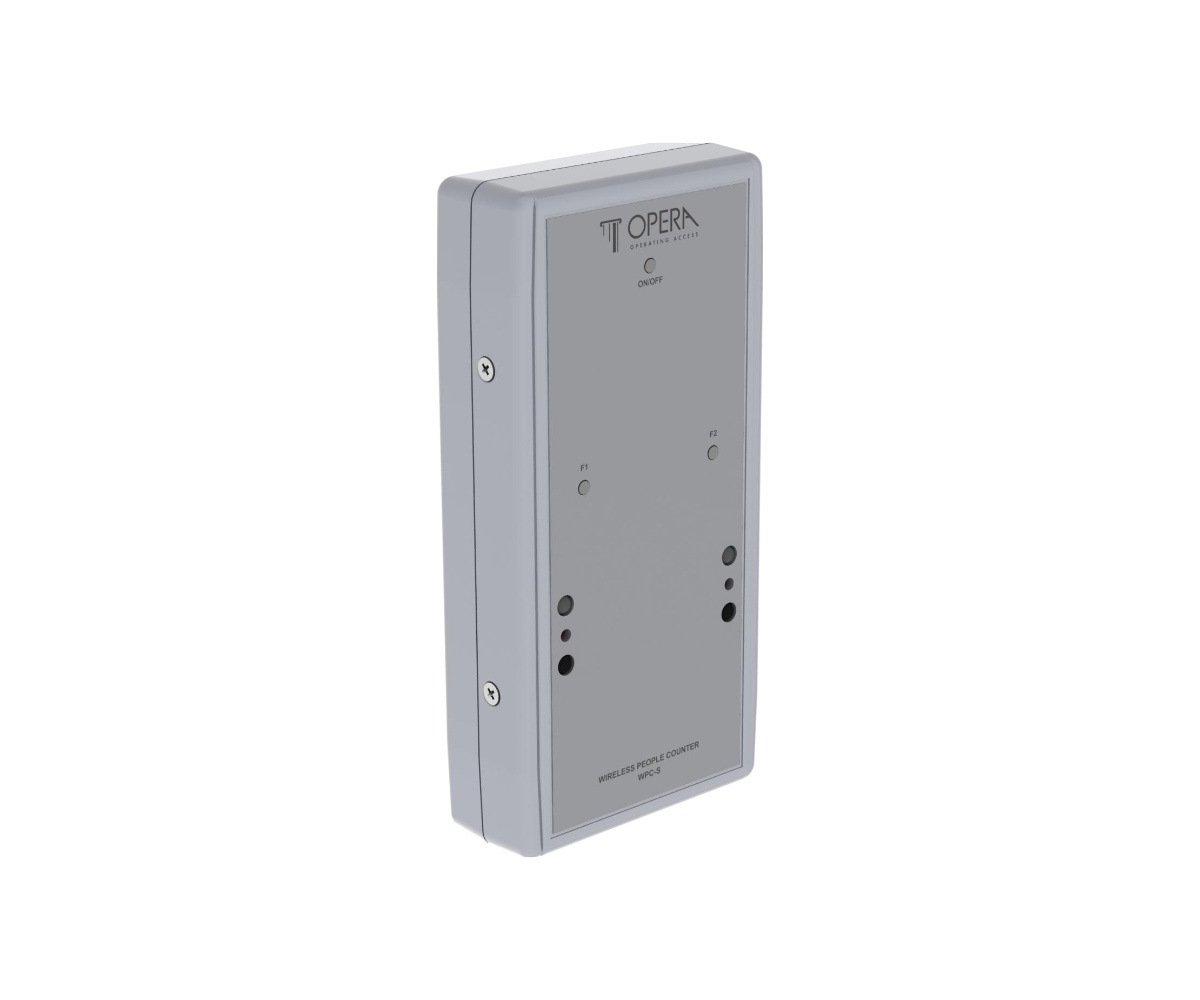

Art. 59001 / 59002 / 59001RF / 59002RF - People counter

People counter for monitoring the number of people in a room with programming buttons, USB port for firmware updates and SD card slot for data storage and transfer to PC when used in stand-alone version.

Configurable addressing from 1 to 10 when used with concentrator connected to PC. Data transfer to concentrator via 433.125 Mhz radio frequency module. Real time clock/date. Storage and maintenance on non-volatile memory of 12 months' data over 24 hours with detail for each hour.

Photoelectric barrier in bidirectional or one-way version. Controllable passageways: 1 for the bidirectional version with a maximum width between projector and receiver of 3 or 6 metres (selectable); 1 for the one-way version with a maximum passageway width of 2.5 metres with reflector.

Displays: Date and time, totals entered, totals left, daily present, total presence from a pre-set date.

PRODUCT CODE:

59001 / 59002 / 59001RF / 59002RF

EMPLOYMENT:

Monitoring the number of people inside a premises (public offices, exhibitions, museums, conference rooms, supermarkets, etc.).

PACKAGE:

People counters

VARIANTS:

Stand-alone version

Radio frequency version for combining with concentrator

Clear

Technical instructions

Standard catalogue

CHARACTERISTICS:

Grey ABS box. Available in two versions: stand-alone [59001 for a one-way gateway / 59002 for a bi-directional passage] or to radio frequency for combining with the concentrator [59001RF for a one-way gateway / 59002RF for a two-way passage].

SPECIFICATIONS:

Body dimensions	165 x 80 x 35 mm
Power supply	- Battery No. 3 x 3.6 V AA size Lithium Thionyl Chloride non-rechargeable, duration greater than one year; - From external 12 / 24 Vdc - 12 Vac power supply.
Rated voltage	3.6 V Power consumption < 3mW
Programmable settings for	Date and time Activation of 'beep' function for each step Programming access password Configurable gate direction Activation/deactivation of reset time Setting the maximum number of presences Resetting data in memory Terminal number Photocell alignment test Restoring Factory Settings Multilingual support (Italian/English)
Data storage and maintenance	Storage and retention in non-volatile memory of 12 months' data over 24 hours with details for each hour
