Art. 36012B / 36612B / 36624B - Security electric strike for mounting

Symmetrical - reversible electric strike for aluminium or wooden security doors. Locked in the absence of power supply.

PRODUCT CODE:

36012B / 36612B

EMPLOYMENT:

Electric strike for security doors to be applied

PACKAGE:

Kit consisting of an electric strike and 6 additional shims (Art. 00360B for 36412B and Art. 00360BG for 36412BCR)

VARIANTS:

FINISH

SUPPLY

Clear

Technical instructions

Standard catalogue

CHARACTERISTICS:

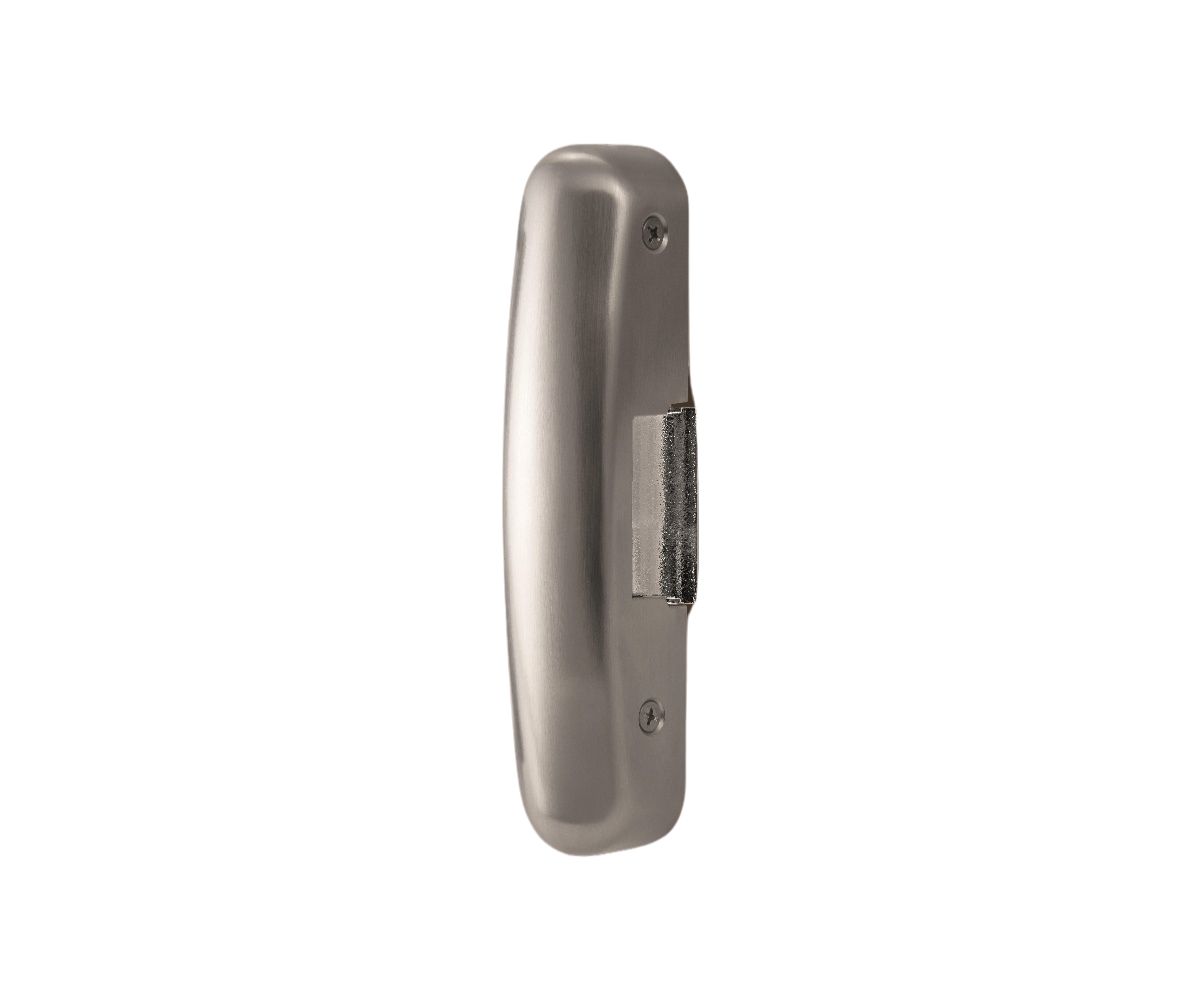

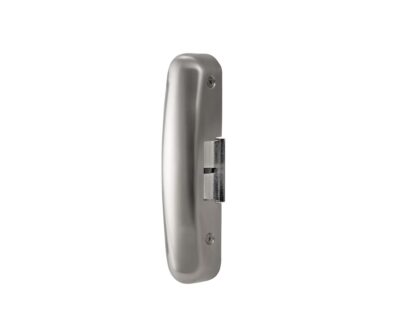

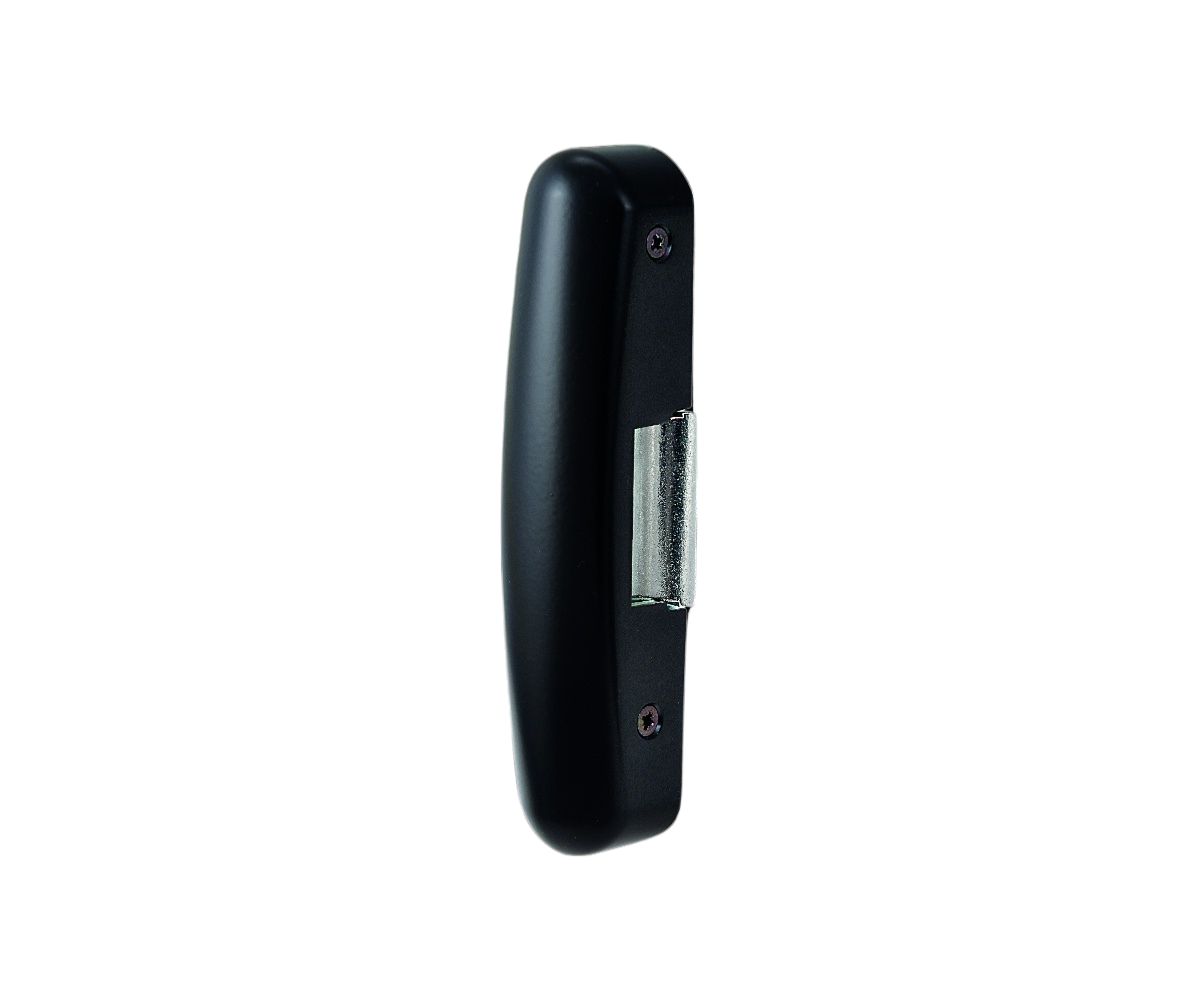

Article available in two colours: black painted metal body [36012B / 36012BM / 36612B / 36624BM / 36612BM / 36624BM] or satin chrome [36012BCR / 36012BMCR / 36612BCR / 36624BMCR / 36612BMCR / 36624BMCR] and anti-corrosion metal latch block.

SPECIFICATIONS:

Body dimensions	170 x 35 x 37 mm
Breaking strength	1,000 kg
Anti-repeater	No (opening limited to the duration of the electrical impulse)

Codes:
36012B	Power supply: 8 - 12 Vac / 500 mA
36012BM	Power supply: 8 - 12 Vac / 500 mA with microswitch C. / N.O. / N.C.
36612B	Power supply: 12 Vdc / 200 mA
36624B	Power supply: 24 Vdc / 100 mA
36612BM	Power supply: 12 Vdc / 200 mA with microswitch C. / N.O. / N.C.
36624BM	Power supply: 24 Vdc / 100 mA with microswitch C. / N.O. / N.C.
Art. + CR	Satin chrome finish
