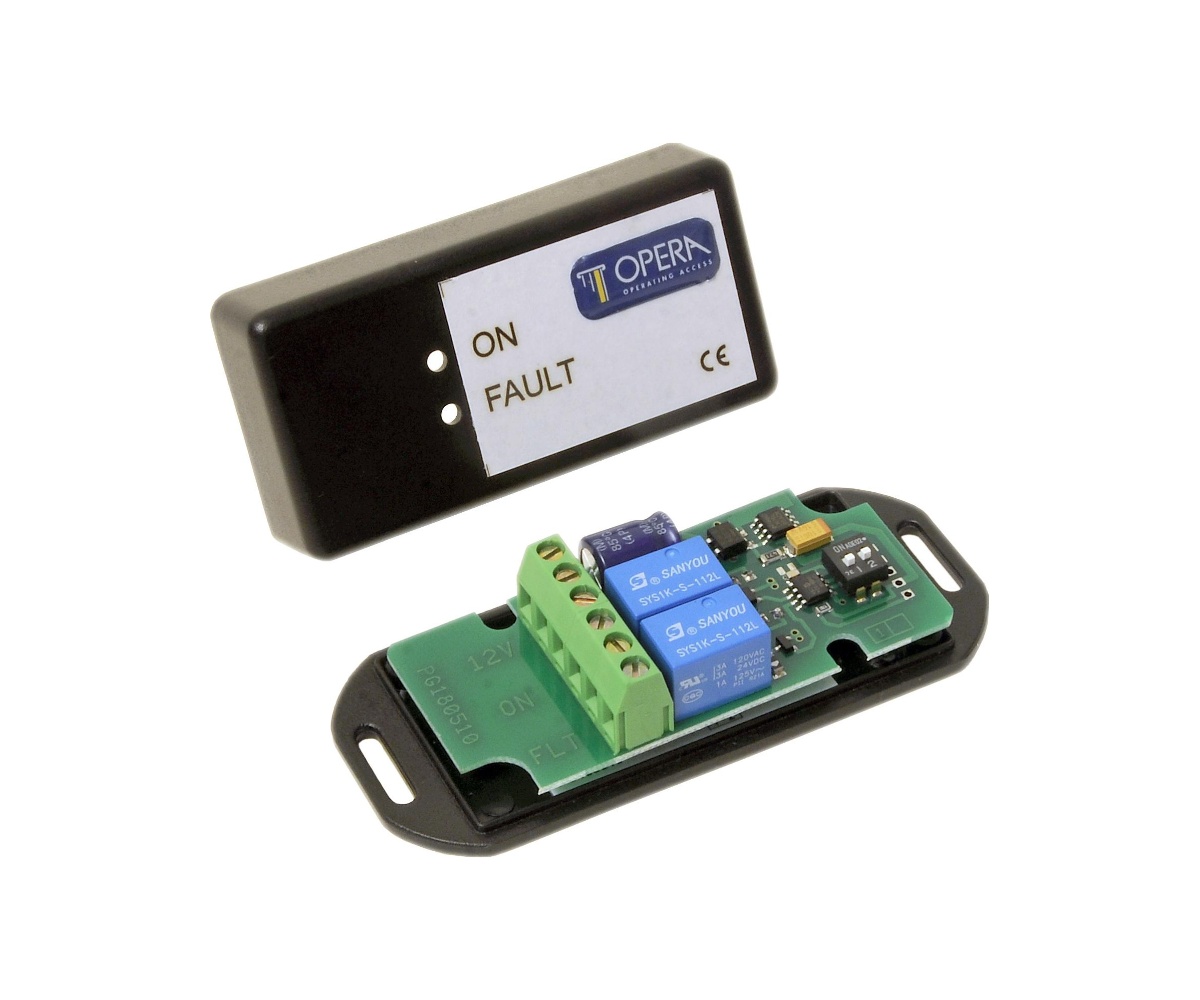

ContactArt. 05257 - Electric intercom interface
Doorphone interface for electric locks. It acts as a door opener relay in installations with electronic locks and as a lock safeguard in the case of a constantly activated intercom button, deactivating all control devices and signalling the fault.
It can be combined with solenoids from the Safety series, solenoids from the Quadra series (combined with its own control unit), Prima, Classica, Maxima (combined with its own control unit), Smart Trim and traditional electric locks.
PRODUCT CODE:
05257
EMPLOYMENT:
Door release relay in installations equipped with electronic locks and safeguarding of the lock in the event of a constantly activated intercom button. Can be combined with electromagnets from the Safety series, solenoid locks from the Quadra, Prima, Classica, Maxima, Smart Trim series and traditional electric locks
PACKAGE:
ABS box with circuit
VARIANTS:
CHARACTERISTICS:
Black ABS box [05257].
SPECIFICATIONS:
| External dimensions | 97 x 41 x 22 mm |
| Power supply | 9 - 12 Vac |
| Electric lock activation output | Relay with dry contact C. / N.O. timerable |
| Output timing | 5 - 10 - 15 - 20 sec |
| Fault signal output for intercom button blocked | Relay with dry contact C. / N.O. |
